3. Trustworthy profiles

A CellProfiler run gives you a few thousand features, and most are redundant. AreaShape_Area and AreaShape_Perimeter carry much the same information, and so does a texture feature at scale 3 and the same texture at scale 5. Others are constant, or blow up because they are ratios with a near-zero denominator.

Feature selection removes these. mantispy reproduces pycytominer’s operations, verified feature by feature, because published pipelines depend on their precise behavior.

import matplotlib.pyplot as plt

import mantispy as mt

cells = mt.ds.synthetic_plate(
    n_plates=2,
    n_wells=96,
    n_cells=30,
    n_features=60,
    n_correlated_pairs=8,
    n_constant_features=4,
    effect_size=2.0,
    seed=0,
)
mt.pp.normalize(cells, by="Metadata_Plate", reference="negcon")
wells = mt.tl.aggregate(cells)
{"wells x features": wells.shape, "flagged degenerate_scale": int(wells.var["degenerate_scale"].sum())}

{'wells x features': (192, 68), 'flagged degenerate_scale': 4}

normalize warned and flagged four features in var["degenerate_scale"]. These are the constant features the generator injected. They have no spread among the control wells, so mad_robustize divides them by epsilon = 1e-18 instead of by zero, as pycytominer does, and they come back at around 1e17.

Here the variance threshold below removes them. It cannot catch a feature that varies across the plate but is constant among the few control wells: feature selection measures variance across all wells, keeps that feature, and it then dominates every distance computed afterwards. Whenever var["degenerate_scale"] flags anything, drop those columns before selecting:

adata = adata[:, ~adata.var["degenerate_scale"].to_numpy()].copy()

On BBBC021 that is two features out of 473, and dropping them adds eight points of mechanism retrieval (see tutorial 6).

The generator injected eight near-duplicate feature pairs and four constant features, so we can check that selection removes them. n_correlated_pairs=8 adds a partner for eight of the features, so the object has 68 columns instead of the 60 requested, and every count below is out of 68.

Before

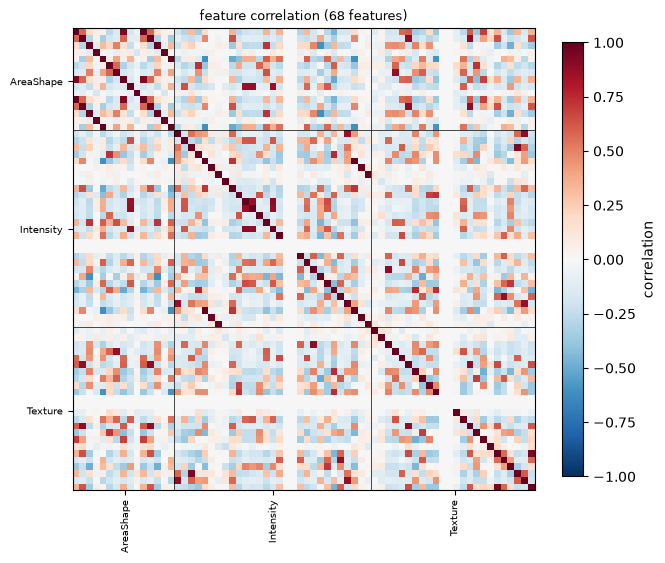

The correlation heatmap is ordered by feature group, with a line at each group boundary. Blocks along the diagonal are families of features that measure nearly the same thing.

mt.pl.feature_correlation(wells, key=None)
plt.show()

The operations

Each operation tests one criterion, and feature_select combines them. It does not drop anything: it writes a boolean column to var, and only subset_features changes the shape, so you can inspect what would be removed first.

operation	drops a feature when
variance_threshold	its variance is below min_variance
frequency_threshold	one value dominates it, or it takes very few distinct values
correlation_threshold	it is highly correlated with another feature
drop_na_columns	too much of it is missing
blocklist	it is on the CellProfiler blocklist of known-unreliable features
drop_outliers	its magnitude has blown up
noise_removal	it varies too much between replicates of the same perturbation

Two of these are easy to get wrong.

variance_threshold is a plain variance cut. The frequency-and-uniqueness rule often described under that name is a separate operation, frequency_threshold, and its two criteria combine with OR.

correlation_threshold uses the signed correlation, not the absolute value, so two features correlated at −1.0 are both kept. pycytominer does the same, and mantispy matches it.

for operation in ("variance_threshold", "correlation_threshold", "blocklist", "drop_na_columns"):
    trial = wells.copy()
    mt.pp.feature_select(trial, operations=(operation,))
    print(f"{operation:24s} keeps {int(trial.var['selected'].sum()):3d} of {trial.n_vars}")

variance_threshold       keeps  64 of 68
correlation_threshold    keeps  56 of 68
blocklist                keeps  68 of 68
drop_na_columns          keeps  68 of 68

blocklist and drop_na_columns keep everything here. The blocklist names real CellProfiler features, and these synthetic ones are not on it. This generator call also injected no missing values. On a real plate both remove features.

Running the default pipeline

The default runs four of the seven operations. frequency_threshold and drop_outliers are off because both can remove an informative feature on a screen with few conditions. noise_removal is off because it needs replicate structure, which not every object has.

mt.pp.feature_select(wells)
wells.uns["mantispy"]["feature_select"]

{'variance_threshold': 4,
 'correlation_threshold': 12,
 'drop_na_columns': 0,
 'blocklist': 0}

survivors = set(wells.var_names[wells.var["selected"]])
constant = wells.uns["mantispy"]["truth"]["constant_features"]
pairs = wells.uns["mantispy"]["truth"]["correlated_pairs"]

{
    "constant features kept": [name for name in constant if name in survivors],
    "duplicate pairs left intact": [(a, b) for a, b in pairs if {a, b} <= survivors],
}

{'constant features kept': [], 'duplicate pairs left intact': []}

Every constant feature is gone, and no near-duplicate pair survived intact.

selected = mt.pp.subset_features(wells)
mt.pl.feature_correlation(selected, key=None)
plt.show()

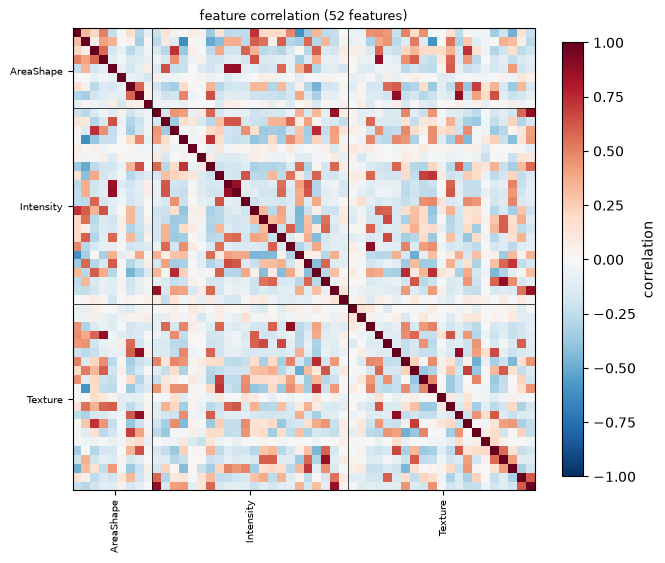

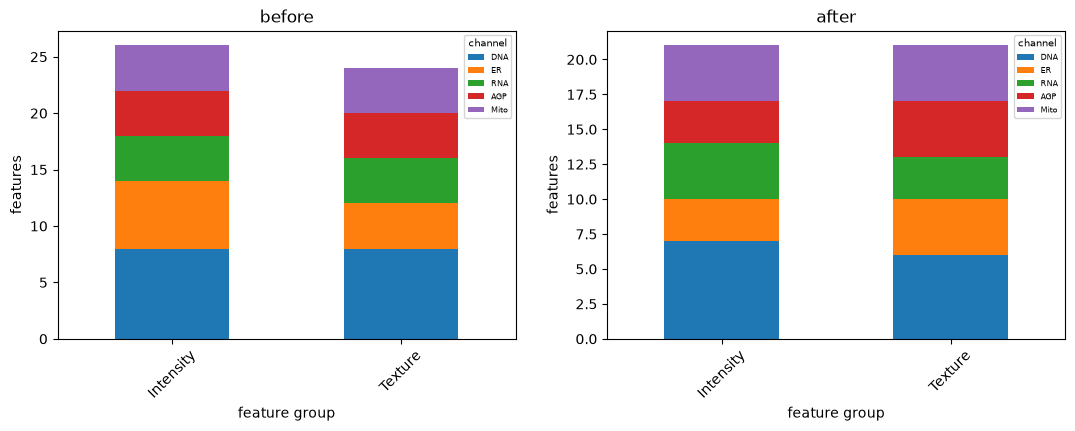

The blocks are gone. pl.feature_groups shows which feature families lost features to selection.

fig, axes = plt.subplots(1, 2, figsize=(13, 4))
mt.pl.feature_groups(wells, ax=axes[0])
axes[0].set_title("before")
mt.pl.feature_groups(wells, key="selected", ax=axes[1])
axes[1].set_title("after")
plt.show()

The blocklist

The default blocklist is pycytominer’s, copied unchanged with its source recorded in the file. It lists features known to be unreliable: twenty Manders and twenty rank-weighted colocalization coefficients, plus the three highest granularity bands. MeasureColocalization writes Manders, RWC and Costes coefficients, and only the first two are on the list.

from mantispy._core.features import load_blocklist

blocked = load_blocklist()
len(blocked), blocked[:3]

(55,
 ['Nuclei_Correlation_Manders_AGP_DNA',
  'Nuclei_Correlation_Manders_AGP_ER',
  'Nuclei_Correlation_Manders_AGP_Mito'])

Outlying cells

Feature selection cleans the columns, and outlier detection cleans the rows. Debris, segmentation failures and out-of-focus cells all produce extreme but uninformative profiles.

There are three methods. Each produces a score where higher means more outlying, and all are thresholded the same way, so contamination means the same thing for each.

• ecod has no parameters and is interpretable: a cell’s score is the sum over features of how far into a tail it sits, so you can see which features made it an outlier.

• isolation_forest catches cells that are unusual in their combination of features without being extreme in any one.

• mad takes the largest robust z-score across features. It is simple to explain but looks at each feature on its own.

for method in ("ecod", "isolation_forest", "mad"):
    trial = cells.copy()
    mt.pp.outliers(trial, method=method, contamination=0.02)
    print(f"{method:18s} flagged {trial.obs['qc_outlier'].mean():.1%}")

ecod               flagged 2.0%
isolation_forest   flagged 2.0%
mad                flagged 2.0%

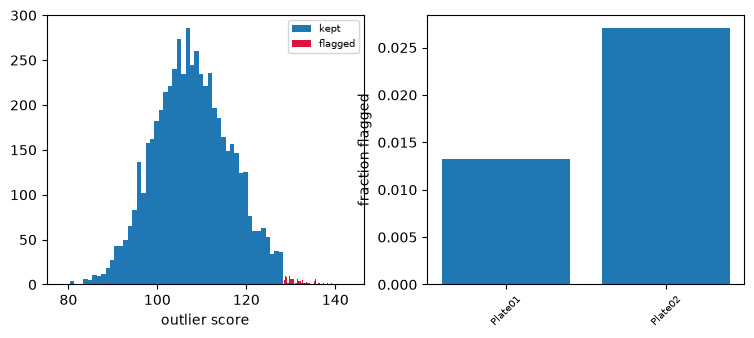

mt.pp.outliers(cells, method="ecod", contamination=0.02)
mt.pl.outliers(cells)
plt.show()

With method="mad" the score is a robust z-score, so score_cutoff=5 applies the usual “more than five robust standard deviations” rule instead of a fixed fraction.

Diagnostics

Run these two plots before any correction. They show whether you need one.

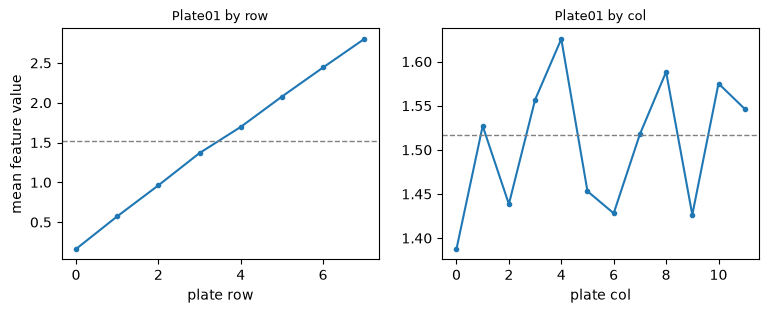

plate_effects shows row and column marginals per plate. A position artifact appears as a trend across rows or columns, while noise scatters around the plate median.

gradient = mt.ds.synthetic_plate(n_wells=96, n_cells=10, n_features=20, row_gradient=3.0, seed=0)
mt.pl.plate_effects(mt.tl.aggregate(gradient, min_cells=0))
plt.show()

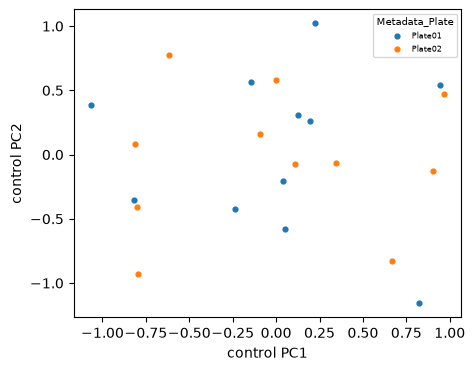

control_drift projects the control wells onto components fitted on the controls alone. If the controls of different plates land in different places, the reference itself shifts between plates, which is what normalization should remove.

mt.pl.control_drift(wells, groupby="Metadata_Plate")
plt.show()

Next: 4. Correcting and evaluating, on removing these artifacts and measuring whether that helped.
