9. Scaling up, and correcting across laboratories

At screen scale, data often no longer fits in memory and comes from more than one laboratory. This page covers both, using JUMP-Target-2, the plate the JUMP consortium ran at every participating laboratory, so any difference between two copies of it is technical.

A note on terms. JUMP calls a participating laboratory a source, and this page uses that column throughout: Metadata_Source, with values source_3 and source_4. In a CellProfiler export, Metadata_Site is a field of view inside a well (four or nine per well), which this page does not use. When this page says “site”, it means the laboratory.

The correction results at the end differ from what the batch metrics predict.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scanpy as sc

import mantispy as mt

Working from disk

mt.io.read(path, backed="r") leaves X in the file. obs and var are loaded into memory, so metadata, QC flags and feature selection work as before, and grouped operations read one group at a time.

On 100 000 cells by 500 features, a per-plate median takes 3.5 s and 44 MB backed, against 0.8 s and a 200 MB resident matrix in memory: four times the runtime for four and a half times less memory. Use it only on data that does not fit in memory.

plate = mt.ds.synthetic_plate(n_plates=4, n_wells=96, n_cells=40, n_features=40, seed=0)
mt.io.write(plate, "scaling_demo.h5ad")

backed = mt.io.read("scaling_demo.h5ad", backed="r")
in_memory = mt.io.read("scaling_demo.h5ad")

{
    "backed": (backed.isbacked, type(backed.X).__name__),
    "in memory": (in_memory.isbacked, type(in_memory.X).__name__),
    "obs is in memory either way": type(backed.obs).__name__,
}

{'backed': (True, 'Dataset'),
 'in memory': (False, 'ndarray'),
 'obs is in memory either way': 'DataFrame'}

from_disk = mt.pp.normalize(backed, by="Metadata_Plate", reference="negcon", copy=True)
resident = mt.pp.normalize(in_memory, by="Metadata_Plate", reference="negcon", copy=True)

{
    "identical": bool(np.allclose(np.asarray(from_disk.X), np.asarray(resident.X), rtol=1e-6)),
    "largest difference": float(np.abs(np.asarray(from_disk.X) - np.asarray(resident.X)).max()),
}

{'identical': True, 'largest difference': 0.0}

The results are identical. The backed path reduces group by group while the in-memory path makes one kernel call, and the test suite asserts they agree to 1e-10.

Functions that rewrite X need copy=True here. The file is open read-only, so they raise a clear error instead of failing inside h5py:

try:
    mt.pp.normalize(backed, by="Metadata_Plate")
except ValueError as error:
    print(error)

normalize rewrites X, which a backed object holds on disk and read-only. Pass copy=True to get the result in memory, or adata.to_memory() first. Reading stays streamed either way -- it is only the output that has to live somewhere.

JUMP-Target-2

mt.ds.jump_target2() downloads two TARGET2 plates, one from each of two sources, and joins the JUMP annotation onto them. The plate map is identical at both sources; only the laboratory differs.

jump = mt.ds.jump_target2()
{
    "shape": jump.shape,
    "sources": jump.obs["Metadata_Source"].value_counts().to_dict(),
    "perturbations": int(jump.obs["Metadata_Perturbation"].nunique()),
    "control wells": int(jump.obs["Metadata_Control"].sum()),
}

{'shape': (768, 3634),
 'sources': {'source_3': 384, 'source_4': 384},
 'perturbations': 302,
 'control wells': 128}

A JUMP plate parquet has three metadata columns (source, plate and well) and no information about what each well contained. mt.pp.annotate_jump, which read_jump calls, joins the perturbation identity from the JUMP metadata repository.

The same pipeline

The recipe does not change for data from two sites, including the degenerate_scale drop from tutorial 6. That drop matters most here: 65 of JUMP’s features have no spread among the control wells of some plate, and mad_robustize would return each of them at around 1e17.

mt.pp.normalize(jump, method="mad_robustize", by="Metadata_Plate", reference="negcon")
degenerate = int(jump.var["degenerate_scale"].sum())
jump = jump[:, ~jump.var["degenerate_scale"].to_numpy()].copy()
mt.pp.feature_select(jump, na_cutoff=0.0)
jump = mt.pp.subset_features(jump)

{
    "features with no spread among the controls": degenerate,
    "features kept": jump.n_vars,
    "control wells per source": jump.obs.groupby("Metadata_Source", observed=True)["Metadata_Control"].sum().to_dict(),
}

{'features with no spread among the controls': 65,
 'features kept': 480,
 'control wells per source': {'source_3': 64, 'source_4': 64}}

How big is the site effect?

mt.metrics.evaluate_correction runs the batch metrics and says which direction is better for each.

sc.pp.pca(jump, n_comps=30)
mt.metrics.evaluate_correction(jump, label_key="Metadata_Perturbation", batch_key="Metadata_Source").round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.324	higher
1	silhouette_batch	X_pca	Metadata_Source	0.521	higher
2	ilisi	X_pca	Metadata_Source	1.605	higher
3	clisi	X_pca	Metadata_Perturbation	8.164	lower
4	pc_regression	X_pca	Metadata_Source	0.020	lower

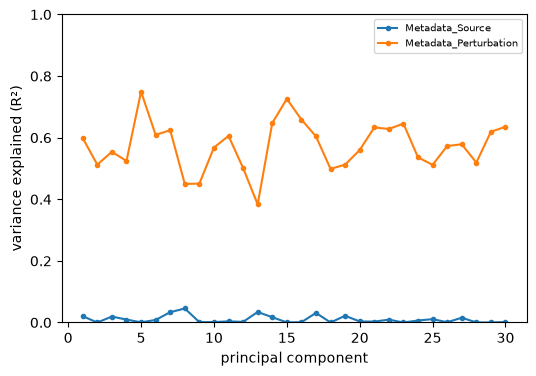

ax = mt.pl.batch_variance(jump, keys=["Metadata_Source", "Metadata_Perturbation"])
plt.show()

Cross-source retrieval

Batch metrics ask whether the sites mix. A screen needs to know whether the same compound, run at two sites, produces the same profile. That is a retrieval task, with pos_sameby set to the perturbation and pos_diffby to the source.

The next cell computes the baseline and four corrections.

def cross_source_map(adata, use_rep=None):
    """Mean average precision for retrieving a compound across sites."""
    treated = adata[~adata.obs["Metadata_Control"].to_numpy()].copy()
    mt.tl.map(
        treated,
        pos_sameby=["Metadata_Perturbation"],
        pos_diffby=["Metadata_Source"],
        neg_diffby=["Metadata_Perturbation"],
        use_rep=use_rep,
        null_size=500,
        seed=0,
    )
    table = treated.uns["mantispy"]["map"]
    return round(float(table["mean_average_precision"].mean()), 3), int(table["below_corrected_p"].sum())


n_treated = int(jump.obs.loc[~jump.obs["Metadata_Control"].to_numpy(), "Metadata_Perturbation"].nunique())
variants = {"per-plate normalize only": jump}

per_source = jump.copy()
mt.pp.sphere(per_source, method="ZCA-cor", reference="negcon", by="Metadata_Source")
variants["+ sphere per source"] = per_source

pooled = jump.copy()
mt.pp.sphere(pooled, method="ZCA-cor", reference="negcon")
variants["+ sphere pooled controls"] = pooled

regressed = jump.copy()
mt.pp.regress_out(regressed, keys=["Metadata_Source"], by=None)
variants["+ regress out source"] = regressed

reproducible = jump.copy()
mt.pp.feature_reproducibility(reproducible, groupby="Metadata_Perturbation", min_icc=0.2)
reproducible = reproducible[:, reproducible.var["icc_selected"].to_numpy()].copy()
variants["+ keep ICC > 0.2"] = reproducible

pd.DataFrame(
    [
        {"pipeline": name, "features": adata.n_vars, "cross-source mAP": score, f"significant of {n_treated}": count}
        for name, adata in variants.items()
        for score, count in [cross_source_map(adata)]
    ]
)

	pipeline	features	cross-source mAP	significant of 301
0	per-plate normalize only	480	0.086	31
1	+ sphere per source	480	0.029	0
2	+ sphere pooled controls	480	0.039	0
3	+ regress out source	480	0.005	0
4	+ keep ICC > 0.2	422	0.094	33

# The batch metrics again, on the sphering that cost the most retrieval.
sphered = variants["+ sphere per source"].copy()
sc.pp.pca(sphered, n_comps=30)
mt.metrics.evaluate_correction(
    sphered, reps=("X_pca",), label_key="Metadata_Perturbation", batch_key="Metadata_Source"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.397	higher
1	silhouette_batch	X_pca	Metadata_Source	0.501	higher
2	ilisi	X_pca	Metadata_Source	1.693	higher
3	clisi	X_pca	Metadata_Perturbation	3.362	lower
4	pc_regression	X_pca	Metadata_Source	0.003	lower

Compare that table with the metrics above.

Per-source sphering improves almost every batch metric. The sites mix better (iLISI 1.605 to 1.693), the labels separate better (cLISI 8.164 to 3.362, label silhouette 0.324 to 0.397), and the variance explained by source drops from 0.020 to 0.003. Only the batch silhouette moves the wrong way, from 0.521 to 0.501.

It also reduces cross-source retrieval from 0.086 to 0.029, and the number of compounds recovered above chance drops from 31 to zero. Pooled sphering and regressing out the source have the same effect.

The only row that does not hurt is keeping the features whose replicates agree, which is not a batch correction, and its gain is small: 0.086 to 0.094, two more compounds. None of the rows in this table fixes the site effect; a step that helps follows later on this page.

Batch correction can still be useful, but it should not be judged by how well the batches mix, which is what every metric in the first table measures. Removing signal makes batches mix easily.

With two plates, there are 64 control wells per site against 480 features, so every covariance-based correction here is underdetermined. With twenty plates per site the result could differ. evaluate_correction accepts a map_key so that the retrieval number appears in the same table as the mixing metrics.

What the consortium’s recipe does

JUMP has three recipes, and the perturbation type decides which one applies. jump-profiling-recipe names them in its configs. For compounds, which TARGET-2 contains, compound.json specifies

profiles_var_mad_int_featselect_harmony

that is, variance-based feature selection, MAD normalization against the negative controls, the rank inverse normal transform, feature selection and Harmony. The ORF and CRISPR branches use a different pipeline, profiles_wellpos_cc_var_mad_outlier_featselect_sphering_harmony, which adds well position correction, cell count regression, outlier removal and sphering.

Sphering is not in the compound pipeline, and on these compound plates it was the step that cut retrieval the most. The two steps of the compound pipeline that the comparison above does not include are covered below, and both behave differently from the corrections in that table.

pp.rank_int is the rank inverse normal transform. Each feature’s values are replaced by their normal scores within a plate, so only the ordering of the wells is kept and the scale is discarded. Every feature ends up standard normal by construction, which is a strong assumption about your data, so check what it costs.

inted = jump.copy()
mt.pp.rank_int(inted, by="Metadata_Plate")

# The reference implementation ranks each feature over the whole screen; ranking within a
# plate additionally removes any plate-level difference in the shape of the distribution.
globally = jump.copy()
mt.pp.rank_int(globally)

inted_icc = inted.copy()
mt.pp.feature_reproducibility(inted_icc, groupby="Metadata_Perturbation", min_icc=0.2)
inted_icc = inted_icc[:, inted_icc.var["icc_selected"].to_numpy()].copy()

pd.DataFrame(
    [
        {"pipeline": name, "features": adata.n_vars, "cross-source mAP": score, f"significant of {n_treated}": count}
        for name, adata in [
            ("per-plate normalize only", jump),
            ("+ rank INT, ranked globally", globally),
            ("+ rank INT, ranked per plate", inted),
            ("+ rank INT per plate, then ICC > 0.2", inted_icc),
        ]
        for score, count in [cross_source_map(adata)]
    ]
)

	pipeline	features	cross-source mAP	significant of 301
0	per-plate normalize only	480	0.086	31
1	+ rank INT, ranked globally	480	0.106	65
2	+ rank INT, ranked per plate	480	0.142	80
3	+ rank INT per plate, then ICC > 0.2	441	0.158	82

This is the first step on this page that helps. Cross-source retrieval more than doubles the number of compounds recovered above chance, and adding the ICC filter improves it a little more. Sphering removed the site effect together with the biology; ranking removes only the scale, which is where most of the site difference was.

Where you rank matters. The reference implementation ranks each feature over the whole screen, which is the by=None default. Ranking within each plate works markedly better here, because it also removes plate-to-plate differences in the shape of a feature’s distribution, which partly separate the two sites.

Where INT sits in the pipeline matters much less. The recipe applies it before feature selection, and this notebook applies it after. The other order (measured separately, not in the table above) gives 0.137 with 85 compounds above chance, against 0.142 and 80 in the table, on 627 features instead of 480. The feature count differs because INT makes every feature standard normal, so a variance threshold has nothing left to discriminate on and drops far fewer features.

The transform discards magnitude, and distance from the controls depends on magnitude, so check the effect on activity as well:

def activity(adata):
    """Phenotypic activity: can each compound be told from the negative controls?"""
    scratch = adata.copy()
    mt.tl.map(scratch, mode="activity", null_size=500, seed=0)
    table = scratch.uns["mantispy"]["map"]
    return round(float(table["mean_average_precision"].mean()), 3), int(table["below_corrected_p"].sum())


{"per-plate normalize only": activity(jump), "+ rank INT": activity(inted)}

{'per-plate normalize only': (0.232, 46), '+ rank INT': (0.306, 68)}

Here it costs nothing, and activity rises too. That does not generalize: this is two sources and 480 features. On the full 132-plate set, where there are enough controls for the raw magnitudes to be meaningful, the transform lowers activity in exchange for comparability. The outcome depends on the screen, so measure both before adopting it.

Harmony, and a metric that disagrees with retrieval

pp.harmony is the best-performing method in the benchmark and the last step of the recipe. It works on an embedding rather than on features (it alternates soft clustering and per-cluster linear correction), so it returns a corrected obsm, not a corrected X.

harmonised = jump.copy()
sc.pp.pca(harmonised, n_comps=30)
mt.pp.harmony(harmonised, batch_key="Metadata_Source", use_rep="X_pca")

mt.metrics.evaluate_correction(
    harmonised, reps=("X_pca", "X_harmony"), label_key="Metadata_Perturbation", batch_key="Metadata_Source"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.324	higher
1	silhouette_batch	X_pca	Metadata_Source	0.521	higher
2	ilisi	X_pca	Metadata_Source	1.605	higher
3	clisi	X_pca	Metadata_Perturbation	8.165	lower
4	pc_regression	X_pca	Metadata_Source	0.020	lower
5	silhouette_label	X_harmony	Metadata_Perturbation	0.332	higher
6	silhouette_batch	X_harmony	Metadata_Source	0.541	higher
7	ilisi	X_harmony	Metadata_Source	1.500	higher
8	clisi	X_harmony	Metadata_Perturbation	8.285	lower
9	pc_regression	X_harmony	Metadata_Source	0.016	lower

# The two site centroids, and the retrieval, before and after.
sources = harmonised.obs["Metadata_Source"].astype(str).to_numpy()
{
    key: {
        "site centroid distance": round(
            float(
                np.linalg.norm(
                    harmonised.obsm[key][sources == "source_3"].mean(axis=0)
                    - harmonised.obsm[key][sources == "source_4"].mean(axis=0)
                )
            ),
            1,
        ),
        "cross-source mAP": cross_source_map(harmonised, use_rep=key),
    }
    for key in ("X_pca", "X_harmony")
}

{'X_pca': {'site centroid distance': 436.6, 'cross-source mAP': (0.085, 32)},
 'X_harmony': {'site centroid distance': 371.9, 'cross-source mAP': (0.1, 62)}}

Harmony moves the two sites 14% closer and raises cross-source retrieval from 0.085 to 0.099, nearly doubling the compounds recovered above chance. iLISI, however, gets worse, from 1.605 to 1.490.

This is the same disagreement as with sphering, in the opposite direction. With sphering the batch metrics improved while retrieval collapsed; here a batch metric gets worse while retrieval improves. iLISI asks whether a well’s nearest neighbors come from both sites. Harmony aligns the sites globally without mixing local neighborhoods, so a well stays surrounded by wells from its own site while the two clouds move together. Both observations hold, and retrieval is the one that answers the screen’s question.

harmonypy can report convergence and return the embedding unchanged. pp.harmony compares its output with its input and warns when they are identical, so that uncorrected numbers do not pass unnoticed through the rest of the pipeline.

treated = jump[~jump.obs["Metadata_Control"].to_numpy()].copy()
mt.tl.map(
    treated,
    pos_sameby=["Metadata_Perturbation"],
    pos_diffby=["Metadata_Source"],
    neg_diffby=["Metadata_Perturbation"],
    null_size=500,
    seed=0,
)
sc.pp.pca(treated, n_comps=30)
mt.metrics.evaluate_correction(
    treated, label_key="Metadata_Perturbation", batch_key="Metadata_Source", map_key="map"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.339	higher
1	silhouette_batch	X_pca	Metadata_Source	0.511	higher
2	ilisi	X_pca	Metadata_Source	1.599	higher
3	clisi	X_pca	Metadata_Perturbation	12.930	lower
4	pc_regression	X_pca	Metadata_Source	0.024	lower
5	mean_average_precision	X_pca	Metadata_Perturbation	0.086	higher

The last table is evaluate_correction with map_key= set, so the retrieval number appears in the same table as the mixing metrics. It runs on the treated wells only, which is why cLISI reads 12.9 here against 8.2 in the first table on this page: dropping 128 DMSO wells with the same label makes every neighborhood more label-diverse. Compare rows within a table, not across tables built on different rows.

Which compounds reproduce across sites?

The results above are aggregates: one mAP for the screen, one LISI per representation. Follow-up work needs to know which compounds reproduced, which the page has not yet shown.

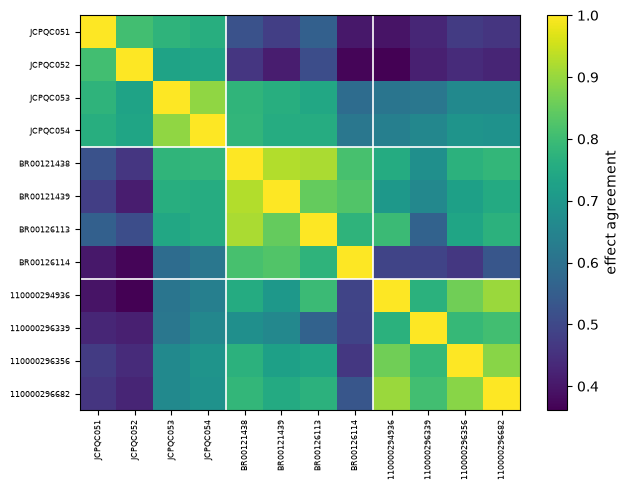

tl.transport answers that. It computes each perturbation’s effect as its profile minus the control centroid of its own setting, so a baseline offset does not count as disagreement, and measures how well those effect vectors agree across settings. by= takes a list from coarsest to finest level, and each pair of plates is assigned to the coarsest level at which the two differ, so every comparison belongs to exactly one level.

This needs more than the two plates used so far. With one plate per laboratory, laboratory and plate effects are the same comparison and cannot be separated. jump_target2 pins twelve plates: three sources, two batches each, two plates per batch. That adds a third source, source_6, to the source_3 and source_4 introduced at the top.

This section uses only the per-plate mad_robustize normalization from earlier, without rank_int, Harmony or the other corrections evaluated above. Its numbers are an uncorrected baseline on a different set of plates and are not comparable with the two-plate mAP values earlier on this page.

hierarchy = mt.ds.jump_target2(plates=None)
mt.pp.normalize(hierarchy, method="mad_robustize", by="Metadata_Plate", reference="negcon")
hierarchy = hierarchy[:, ~hierarchy.var["degenerate_scale"].to_numpy()].copy()
mt.pp.feature_select(hierarchy, na_cutoff=0.0)
hierarchy = mt.pp.subset_features(hierarchy)

mt.tl.transport(hierarchy, by=["Metadata_Source", "Metadata_Batch", "Metadata_Plate"])
by_level = hierarchy.uns["mantispy"]["transport"]
by_level.groupby("level", observed=True).agg(
    compounds=("group", "size"),
    agreement=("agreement", "median"),
    reproduce=("transports", "sum"),
).round(3).reindex(["Metadata_Plate", "Metadata_Batch", "Metadata_Source"])

	compounds	agreement	reproduce
level
Metadata_Plate	301	0.474	75
Metadata_Batch	301	0.363	75
Metadata_Source	301	0.135	61

Read the table row by row. A compound’s effect agrees at +0.474 between two plates of one batch, at +0.363 between batches of one laboratory, and at +0.135 between laboratories. Each step up the hierarchy lowers agreement, and the step between laboratories costs about twice as much as the step between batches.

A single aggregate cross-source mAP shows that the sites disagree, but not whether to fix plate handling or the protocol. The gap between levels does.

The reproduce column counts the compounds whose agreement beats the null at q < 0.05. The null uses every mismatched pair of compounds at that level instead of a sample. A sampled null would not give Benjamini-Hochberg enough resolution: its smallest possible p-value is one over the number of draws, so the count would reflect the number of draws rather than the screen. Standardizing the effect vectors turns the comparison into one matrix product, so the full null takes about a second.

pl.setting_agreement, in the figure below, reads the same effect vectors by plate instead of by compound: it shows which of the twelve plates agree with each other. Annotating by source draws a line at each laboratory boundary, so a laboratory that disagrees with itself appears as a broken block. Its cells are an activity-weighted mean over compounds, while the table’s per-level number is an unweighted median, so the heatmap reads higher than the table for the same pair of settings. Use it to see which settings differ from each other, not to compare absolute levels with the table.

fig, ax = plt.subplots(figsize=(6.5, 5))
mt.pl.setting_agreement(hierarchy, by="Metadata_Source", ax=ax)
fig.tight_layout()
plt.show()

Summary

• Backed mode saves memory at the cost of speed, and the numbers are identical either way.

• “Site” is ambiguous in this field. JUMP’s source is a laboratory; CellProfiler’s Metadata_Site is a field of view.

• A JUMP plate needs its annotation joined before analysis; read_jump does that.

• Judge a correction by the question your screen asks. On this data almost every batch metric favored a correction that removed the biological signal.

• Reproducibility has levels. tl.transport separates them, and the gap between two levels is more actionable than either value alone. It is an observational measure: it supports “this effect did not reproduce at the other site”, but not “this effect would have been x at the other site”.

Next: 10. Differential features, on which features changed and whether their p-values are reliable.
